CLAAS NEXOS

¹ to ECE R 120

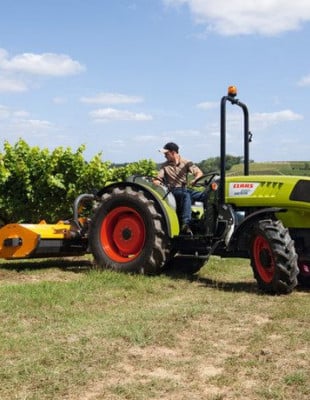

The power within.With a maximum lift capacity of 3.1 t (VE max. 2.6 t) at the ball ends on the rear linkage, the NEXOS can handle a wide range of implements. A hydraulic lift rod and hydraulic side stabilisers are available for the VL and F models, providing high-precision implement guidance, particularly over sloping terrain. The rear linkage in both the cab and platform versions of the NEXOS is available with a mechanical or electrohydraulic TCE 6 operating unit. Whether mechanically or push-button operated, the external controls on the mudguards allow safe, rapid implement attachment.

Combinations.The folding front linkage with integrated front PTO enables various implement combinations to be used and greatly reduces the number of passes. Combined operations save time and costs and boost efficiency.

Both engines meet the stringent requirements of the Stage IIIA (Tier 3) exhaust emissions standard, using internal exhaust gas recirculation, turbochargers, charge-air coolers and mechanical fuel injection. The high-torque engines exhibit extremely lively response characteristics, enabling the tractor’s full output to be harnessed in all applications.

The right speed for the job.A range of PTO speeds is available to ensure that you can access the right engine speed for every job. Maximum PTO speeds are reached at a fuel-efficient, high-torque engine speed of 1,950 rpm. In 540 ECO mode, the full PTO speed is available at 1,650 engine rpm, reducing fuel consumption during light work such as fertiliser spreading.
Regardless of the implement – for example, a fertiliser spreader or mulcher – the PTO is always engaged very gently, with either hydraulic or electrohydraulic support.

Choice of four transmission variants.

The 24 gears deliver the ideal speed in all types of operation; for instance, a minimum speed of 340 m/h is possible at rated engine speed. The TWINSHIFT power transmission enables each gear to be selected effortlessly via a push button on the gear knob and without interrupting tractive output or engaging the clutch. All NEXOS transmissions have been engineered to minimise power losses, meaning you benefit from maximum efficiency and reduced fuel consumption.

The all-wheel drive is push-button activated and electrohydraulically engaged. To avoid unnecessary tyre wear, the all-wheel drive is automatically engaged and disengaged at over 14 km/h. It is also automatically engaged when braking to ensure a higher standard of safety on the road. This means that your NEXOS can be safely brought to a standstill at any time.

Fresh air.The cab air filter is easily accessible from the exterior and can be cleaned very quickly to ensure an ongoing supply of fresh air to the cab. All the materials used in the cab are highly robust, dirt-resistant and easy to clean.

Ready in an instant.When the NEXOS is called upon to give its all in hot, dusty conditions in narrow rows or orchards, everything needs to be right. Daily maintenance work must be as straightforward as possible, since we know from experience that nobody likes having to face complicated or awkward tasks.

Thanks to its one-piece bonnet, the entire engine compartment can be accessed at the flick of a catch. The air filter is directly accessible, allowing it to be quickly checked and cleaned. The radiator slides out, and the air filter can be removed in no time at all. When required, radiator surfaces can be cleaned quickly and easily, reducing downtime to the absolute minimum.

Easy to maintain.The NEXOS boasts particularly long maintenance intervals. 500-hour engine oil change intervals reduce downtime and costs. The hinged opening in the bonnet is also extremely convenient and enables the fuel tank to be accessed and filled with ease.

A safe and comfortable ride.With a choice of cab or platform, the NEXOS is highly versatile in the field. Large, wide-opening doors and a non-slip step make access to the vehicle safe and convenient. The front and rear windows can be opened for natural ventilation, and the powerful air-conditioning unit creates a cool working environment in hot and dusty conditions.

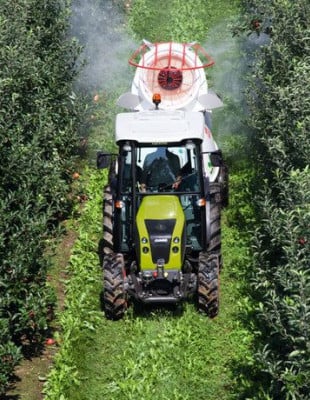

An active carbon filter can be factory-fitted to protect the operator during crop spraying operations. Together with a well-sealed cab and powerful ventilation system, the filter ensures that the driver is well protected even during intensive crop spraying work.

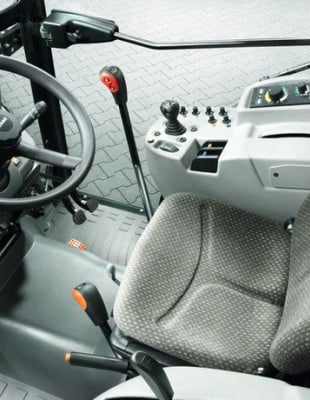

An air-sprung driver's seat is optionally available for both cab and platform versions. The steering column is fully adjustable to ensure a comfortable seating position for the driver.
